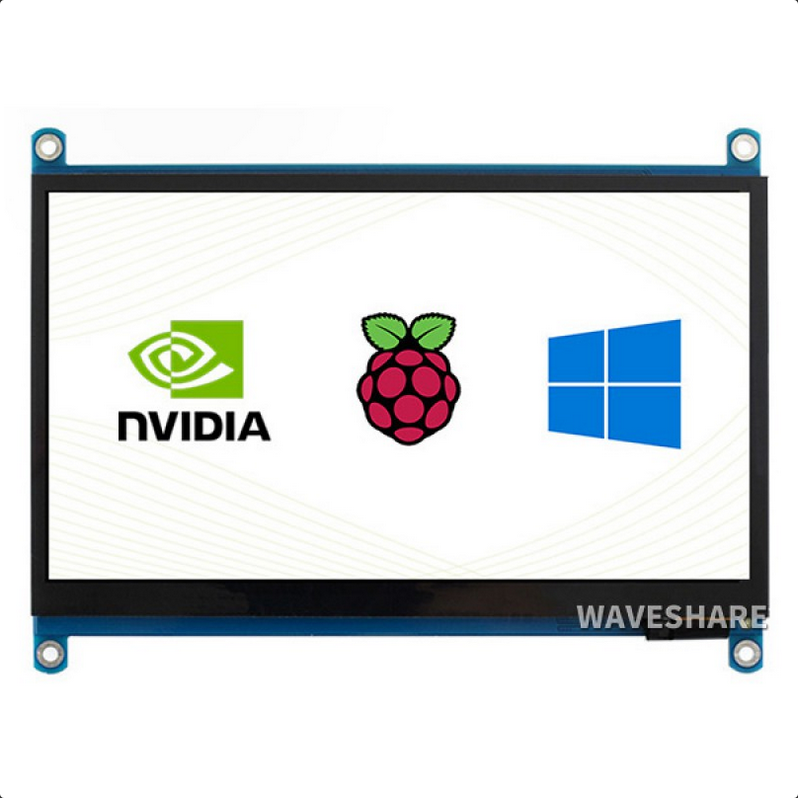

7inch Capacitive Touch Screen LCD (H), 1024×600, HDMI, IPS, Various Systems Support
ΚατασκευαστήςWaveShare
Διαθεσιμότητα : Σε stock 10 Προϊόν(ντα) Άμεσα Διαθέσιμο
Κωδικός προϊόντος :48-14628
Βάρος και διαστάσεις προϊόντος
Βάρος προϊόντος: 0.3800KG
49,90 €
Χωρίς ΦΠΑ : 40,24 €
Περιγραφή
7" HDMI Touch Display
- Size7"
- Resolution1024×600
- Display InterfaceHDMI / VGA
- Display PanelIPS
- Viewing Angle170°
- Touch TypeCapacitive
- Touch Points5-point
- Touch PortUSB
- OSD MenuBrightness/Contrast
- Audio Output13.5mm Jack
- Audio Output24PIN Header
- GamingXbox360/PS4/Switch
Device & System Support
Raspberry Pi
Supports Raspberry Pi OS, 5-point touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free
Supports all versions of Raspberry Pi
Jetson Nano
Supports Ubuntu, single point touch, driver free
PC
Supports Windows 11 / 10 / 8.1 / 8 / 7, 5-point touch, driver free
Game Console
Xbox360, PS4, Switch...
Connection Examples
Working with Raspberry Pi 4
Working with Raspberry Pi 3B+
Working with Raspberry Pi Zero W
Working with AI Computer Jetson Nano
Working with mini PC
Display
IPS Panel
Touch Control
1) up to 5-point touch, depending on the operating system.
Enjoy Gaming
* audio output via earphone/speaker port.
Demystifying Design Details
- LCD FFC cable anti-interference design, more stable for industrial application
- VCOM voltage adjustment for optimizing display effect
- USB protocol translator, converting the touch signal into standard multi-points touch protocol to achieve smooth multi-points touch control
- 4~5.5V wide range USB power input, to avoid display flickering or touch failure that caused by low USB voltage
- One-way isolation circuit. When powered from Touch port, the 5V voltage from Touch port will provide power supply for both touch function and display circuit. When powered from Power Only port, the Touch port will provide power supply for just touch function, and the other circuit will be powered via Power Only port. The two power inputs are totally isolated to prevent any breakdown
- Two audio outputs for earphone and speaker, each track of speaker supports 2.6W PA circuit
- OSD menu config buttons for adjusting backlight and display color
- DC-DC LCD driver circuit, low heating on long term operation
- VGA port to support VGA devices
Appearance and Dimensions
Προδιαγραφές
Inches
7
Κατάσταση
New
