12V Modbus RTU 8, Channels Relay Module, Input Optocoupler, Isolation RS485 MCU
ΚατασκευαστήςOEM
Διαθεσιμότητα : Σε stock 4 Προϊόν(ντα) Άμεσα Διαθέσιμο
Κωδικός προϊόντος :12-0S1318-8
Βάρος και διαστάσεις προϊόντος
Βάρος προϊόντος: 0.1600KG
21,90 €
Χωρίς ΦΠΑ : 17,66 €
Περιγραφή

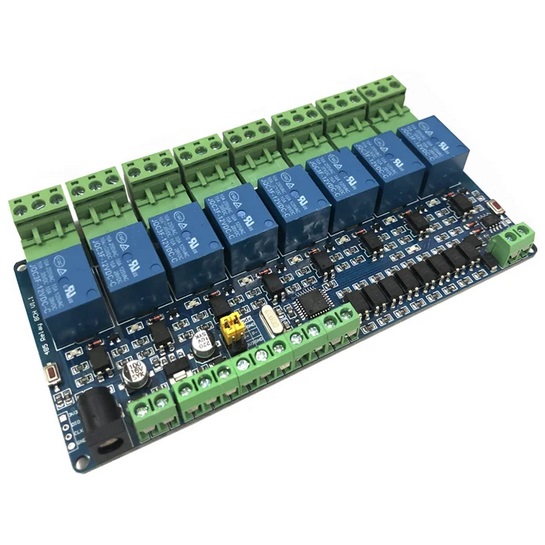

12V Modbus RTU 8, Channels Relay Module, Input Optocoupler, Isolation RS485 MCU
This is a 12V Modbus RTU 8 Channels Relay Module Input Optocoupler Isolation RS485 MCU. It is used to control various appliances and other equipment with a large current. It can be controlled directly by a Micro-controller (Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic). 12V 8-Channel Relay interface board and each one needs 50-60mA Driver Current. Equipped with high-current relay, AC250V 10A ; DC30V 10A.
Features:
- Modbus serial communication
- Relay switching output
- Convenient AT command control
Χαρακτηριστικά :
Product Name |
8 Bit ModbusRTU Relay Module |
---|---|
MCU Type |
One STM8S103K |
Working Voltage |
DC 12 V |
Operating Temperature (°C) |
-25℃~85℃ |
Working Humidity Range |
5%~95%RH |
Size (mm): |
140*80*20mm |
Shipping Weight | 0.149 kg |
Shipping Dimensions | 18 × 15 × 1 cm |
