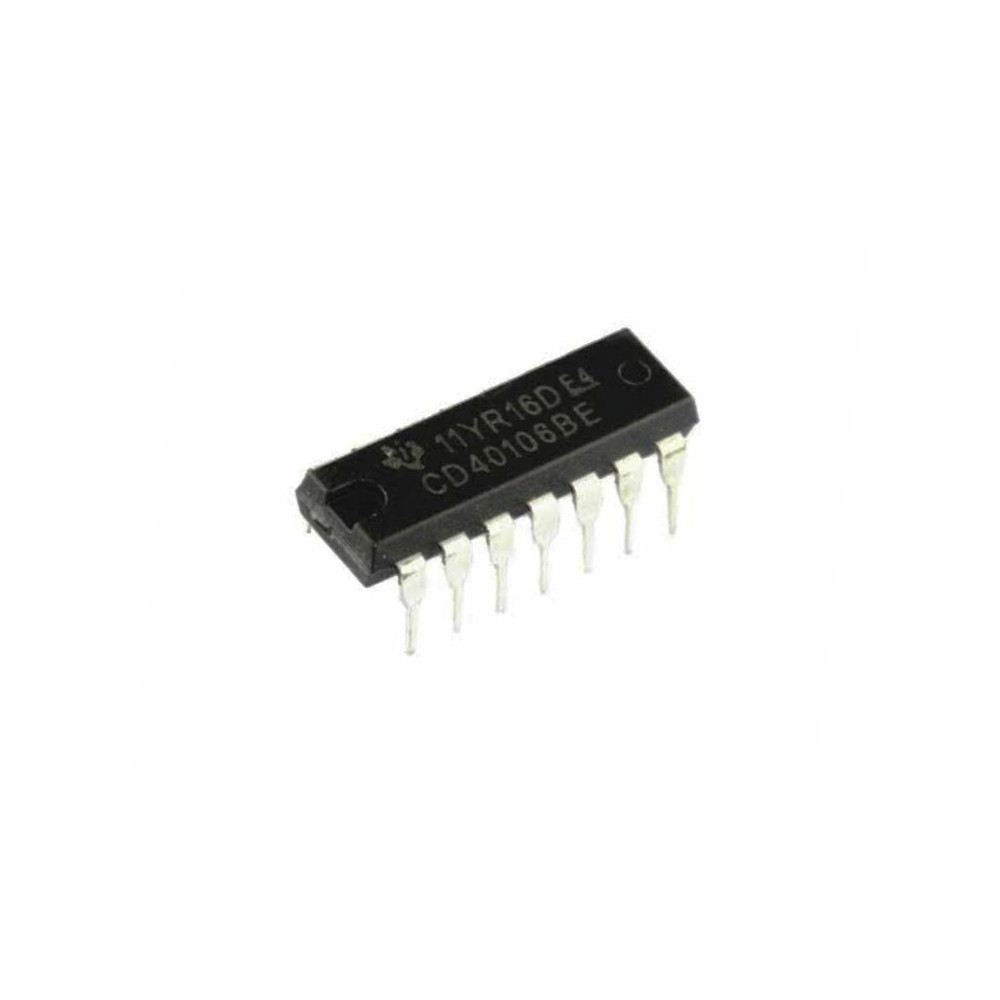

CD40106BE DIP-14
ΚατασκευαστήςOEM
Διαθεσιμότητα : Σε stock 137 Προϊόν(ντα) Άμεσα Διαθέσιμο
Κωδικός προϊόντος :12-00Z707
Βάρος και διαστάσεις προϊόντος
Βάρος προϊόντος: 0.0800KG
0,30 €
Χωρίς ΦΠΑ : 0,24 €
Περιγραφή
CD40106BE DIP-14
The CD40106 IC consists of six Schmitt-Trigger inputs. Each circuit functions as an inverter with Schmitt-Trigger input. The trigger switches at different points for positive- and negative-going signals. The difference between the positive-going voltage (VP) and the negative-going voltages (VN) is defined as hysteresis voltage (VH).
CD40106 Pinout Configuration
|
Pin Number |
Pin Name |
Description |
|
1,3,5,11,13,15 |
Schmitt Input Pins |
Input pins of the Schmitt trigger |
|
2,4,6,10,12,14 |
Schmitt Inverted Output Pins |
Output pins of the Schmitt trigger |
|
7 |
Ground |
Connected to the ground of the system |
|
14 |
Vcc (+5V) |
Resets all outputs as low. Must be held high for normal operation |
