Adafruit PiTFT Plus 320x240 2.8 TFT + Capacitive Touchscreen - Assembled - Pi 3, Pi 2, Model A+ / B+

Rating: Not Rated Yet
Manufacturer
Availability: in stock 1 item(s) Άμεσα Διαθέσιμο
Product Code:ADA-2423

Product Dimensions and Weight

Product Weight: 0.0200KG
59,90 €
Sales price without tax 48,31 €

Description

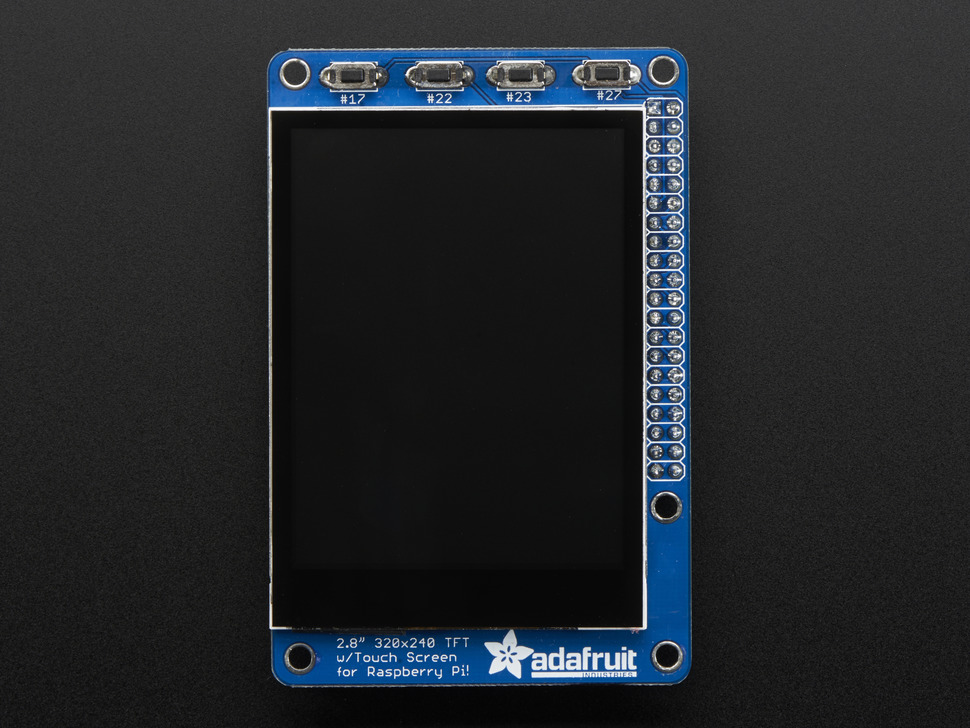

Is this not the cutest little display for the Raspberry Pi? It features a 2.8" display with 320x240 16-bit color pixels and a capacitive touch overlay. That's right, instead of a resistive touchscreen, which requires a fingernail or stylus, you can now use a fingerpad. The screen looks much nicer, with a black bezel and glass overlay.

This updated design fits perfectly onto the Pi Model A+, B+, Pi 2 or Pi 3! Works just like the Model B version, but now matches the outline of the Raspberry Pi 2 and Model B+. It also has all 40 pins GPIO pins brought out so you can connect a 40-pin GPIO cable underneath. Now that it's the same outline as a Pi 3/2/B+ it fits well on top of a Pi in our Raspberry Pi Enclosure base.

The display and touchscreen uses the hardware I2C Pins (SDA & SCL), SPI pins (SCK, MOSI, MISO, CE0) as well as GPIO #25 and #24. All other GPIO are unused and you can still share the I2C pins with sensors, LED drivers, etc. Since we had a tiny bit of space, there's 4 slim tactile switches wired to four GPIOs, that you can use if you want to make a basic user interface. For example, you can use one as a power on/off button.

Use it for console access or easily pop up X11 onto the PiTFT for a mini monitor, although its rather small at 320x240. Instead, we recommend using PyGame or other SDL-drawing programs to write onto the frame buffer

Raspberry Pi computer and enclosure not included!

As of July 22nd, 2015 this display comes fully assembled with tactile switches too

Specifications

Inches
2.8
Κατάσταση
New
