LED, Green, Through Hole, T-1 (3mm), 20 mA, 2.1 V, 570 nm.

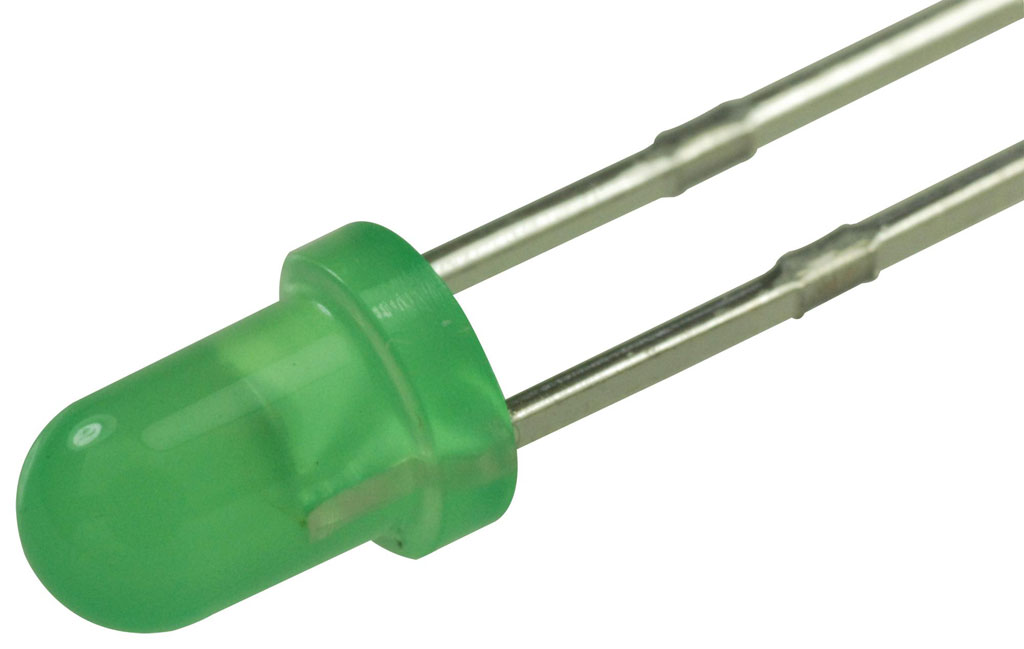

The MCL034GD is a green through-hole High Brightness LED made of GaP dice and diffused lens. It features 568/570nm wavelength, 260°C for 5 seconds lead soldering temperature range and 76° viewing angle.
-40 to 100°C Operating temperature range

Product Information

LED Colour: Green
LED Mounting: Through Hole
LED Case Size: T-1 (3mm)
Forward Current If: 20mA
Forward Voltage: 2.1V
Wavelength Typ: 570nm
Luminous Intensity: 6mcd
Viewing Angle: 76°
Lens Shape: Round
Product Range: 3mm Green LED
