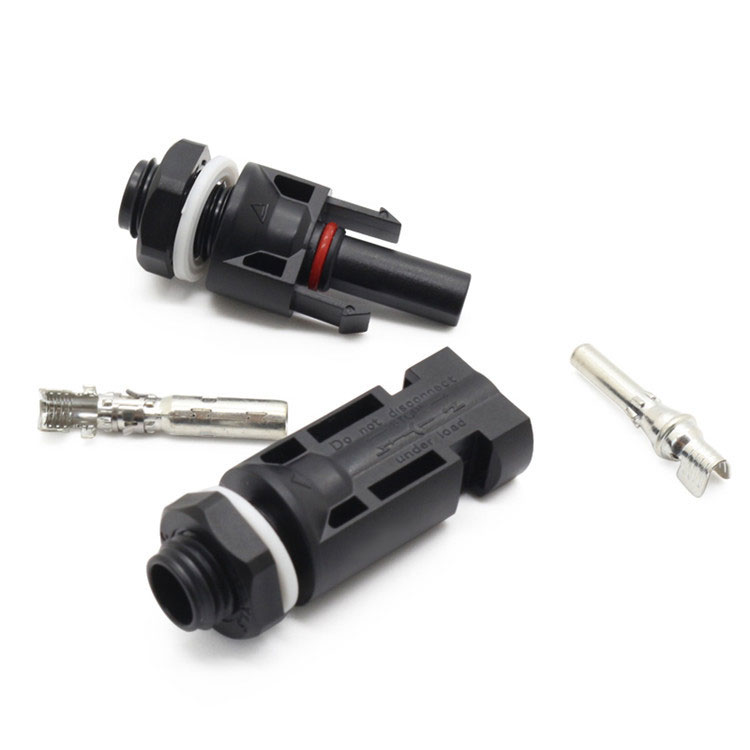

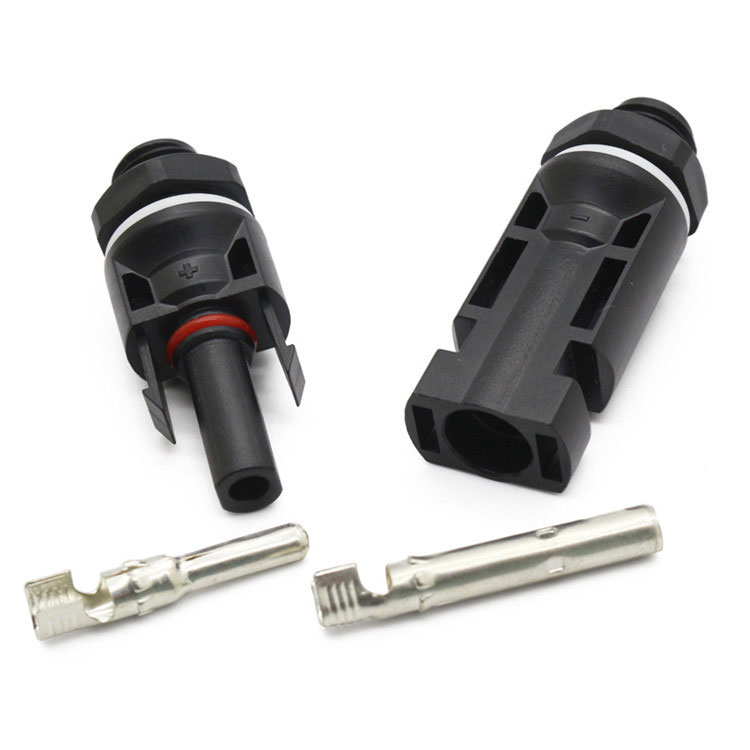

MC4 Solar Deck Panel Junction Connector 1 pair
Availability: in stock 3 item(s) Άμεσα Διαθέσιμο
Product Code:NT0637
Product Dimensions and Weight
Product Weight: 0.0100KG
2,41 €
Sales price without tax 1,94 €
Description
MC4 Solar Deck Panel Junction Connector 1 pair
Rate voltage:1000V
Rated current:30A(4mm2,6mm2)
Test voltage:6KV(50Hz)
Protect degree:IP67
Insulation material :PPO
Contact material: Copper sliver plated
Operating temperature :-40°C~+90°C
Safe class :2
Flame class :UL94-V0
Contact resistance of plug connectors ≤5mΩ
Insertion force ≤50N
Withdraw force ≥50N
Suitable cable 2.5mm2/4mm2/6mm2(AWG14/12/10)
Locking system Snap in
