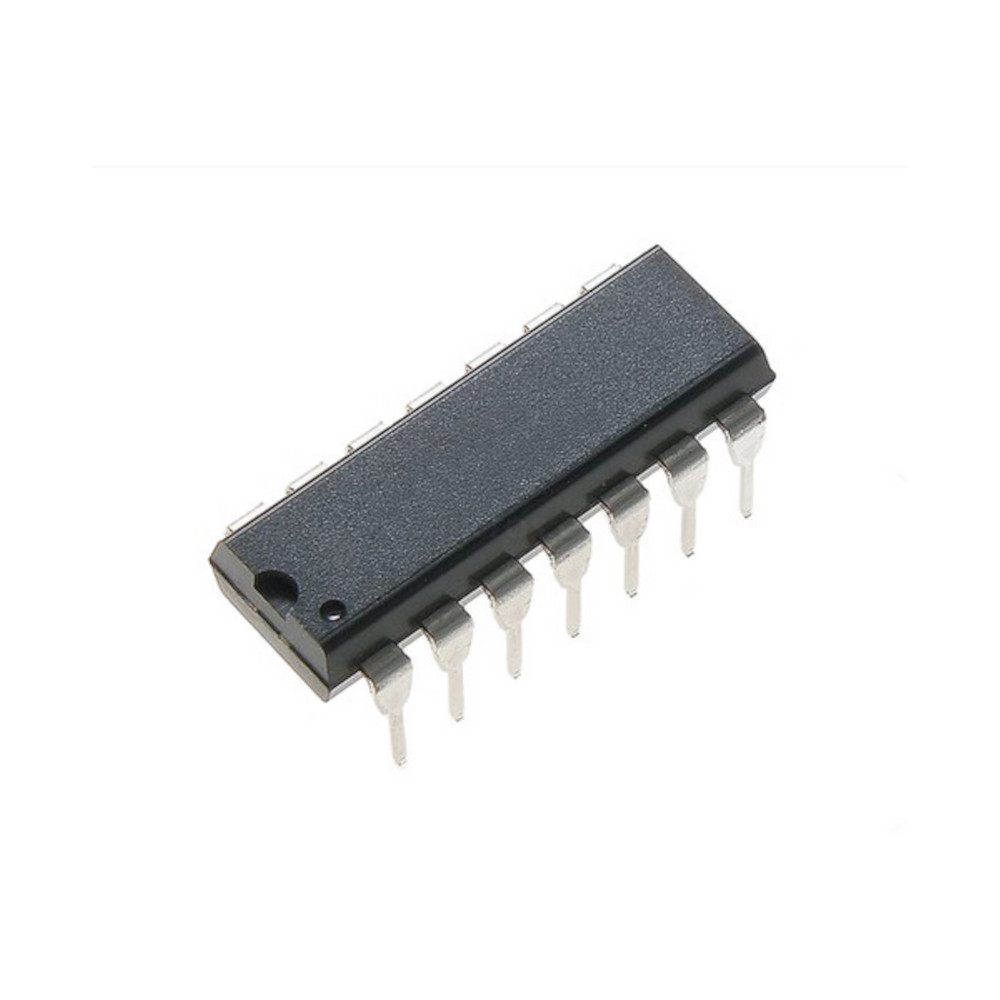

SN74LS90N Counter/Divider Single 4-Bit Decade UP 14-Pin PDIP Tube
ΚατασκευαστήςOEM
Διαθεσιμότητα : Σε stock 48 Προϊόν(ντα) Άμεσα Διαθέσιμο
Κωδικός προϊόντος :12-00Z672
Βάρος και διαστάσεις προϊόντος
Βάρος προϊόντος: 0.0800KG
0,41 €
Χωρίς ΦΠΑ : 0,33 €
Περιγραφή
SN74LS90N Counter/Divider Single 4-Bit Decade UP 14-Pin PDIP Tube
Decade and Binary Counters Features: High-speed Operation Synchronous Counting and Loading Synchronous Master Reset Ripple-Carry Output Outputs Source/Sink 24 mA TTL-Compatible Inputs and Outputs Input Clamping Diodes Common Reset Common Clock Application: The SN74LS90N is a high-speed synchronous decade and binary counters. It is designed for use in frequency division, counting, and time delay applications. It can be used to divide the frequency of a clock signal by any number between 2 and 1023. It can also be used to count the number of pulses on an input signal. The SN74LS90N is ideal for use in digital systems where high-speed operation, low power consumption, and low noise are required.
Specifications
| Logic Function | Counter/Divider |
| Operation Mode | UP Counter |
| Number of Elements per Chip | 1 |
| Number of Element Inputs | 2 |
| Number of Count Input Enables | 0 |
| Number of Selection Inputs per Element | 0 |
| Number of Element Outputs | 4 |
| Number of Stages | 4 |
| Reset Type | Asynchronous |
| Direction Type | Uni-Directional |
| Triggering Type | Negative-Edge |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 50 @ 5V |
| Absolute Propagation Delay Time (ns) | 50 |
| Process Technology | Bipolar |
| Minimum Operating Supply Voltage (V) | 4.75 |
| Typical Operating Supply Voltage (V) | 5 |
| Maximum Operating Supply Voltage (V) | 5.25 |
| Propagation Delay Test Condition (pF) | 15 |
| Parallel Enable Input | No |
| Terminal Count Output | No |
| Minimum Operating Temperature (°C) | 0 |
| Maximum Operating Temperature (°C) | 70 |
